Description

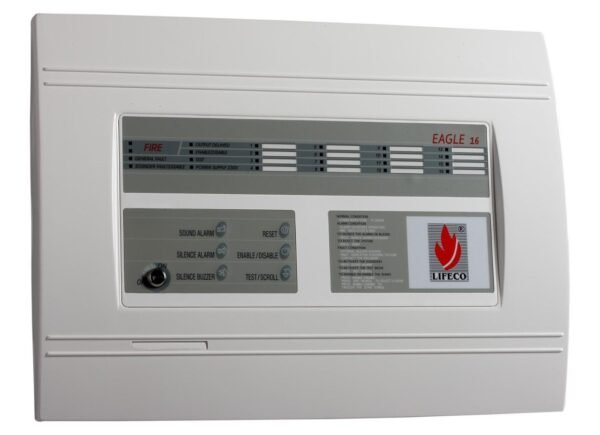

EAGLE16 is a conventional fire detection and indication panel that has 8 fixed and is expanded to 16 zones. EAGLE16 is based on a modular principle – a power unit, a control panel, zone/sounder expanders, an indication module and battery space. A detailed LED indication shows the status of the system, divided in two groups – for technician level and for monitor and observer level. An appropriate mode for zone detector testing by a single person has been implemented – One Man Test. All zones and sirens within the system can be eliminated (Bypass). The panel has been designed to operate with one 12 V battery back-up power, which reduces the costs by the value of one battery per system. The EAGLE16 is suitable for vast range of applications – big office buildings, schools, 2 supermarkets and other with over 3000m2.
Features:
- 16 Fixed Zones
- Supports up to 512 detectors
- Unlimited call points
- 1 “fire” and 1 “fault” relay outputs
- 4 monitored sounder outputs
- Active EOL allowing continuous monitoring of inputs
- Walk test
- LED indication
- Levels of access protected by means of security key
- Plastic box
